Complete Guide to LSR Injection Molding: Everything You Need to Know

Liquid Silicone Rubber (LSR) injection molding has revolutionized manufacturing across industries, from automotive to medical devices. As demand for high-quality, custom silicone components continues to grow, understanding this advanced manufacturing process becomes crucial for product designers, engineers, and procurement professionals.

This comprehensive guide explores everything you need to know about LSR injection molding, from fundamental principles to advanced applications and how to choose the right manufacturing partner.

Table of Contents

  1. What is LSR Injection Molding?
  2. Why LSR Injection Molding is Superior to Traditional Methods
  3. The LSR Injection Molding Process: Step-by-Step
  4. Types of LSR Injection Molding Systems
  5. Applications Across Industries
  6. Advantages of LSR Injection Molding
  7. Design Considerations for LSR Parts
  8. Quality Control in LSR Manufacturing
  9. Choosing the Right LSR Molding Partner
  10. LSR Injection Molding in China: Market Leadership
  11. Future Trends in LSR Injection Molding
  12. Common Challenges and Solutions
  13. Cost Considerations
  14. Get Expert LSR Injection Molding Services

What is LSR Injection Molding?

LSR injection molding is a specialized manufacturing process that combines liquid silicone rubber compounds with precision injection molding techniques. Unlike traditional rubber molding, LSR utilizes a two-component liquid system (Part A and Part B) that chemically cures during the molding process, creating parts with exceptional consistency and quality.

The process involves injecting liquid silicone rubber into heated molds where it undergoes platinum-catalyzed vulcanization, transforming from liquid to solid state. This results in parts with superior dimensional stability, biocompatibility, and performance characteristics that are difficult to achieve with other materials.

Why LSR Injection Molding is Superior to Traditional Methods

Precision and Consistency

LSR injection molding delivers unmatched precision with tolerances as tight as ±0.05mm. The liquid state of the material allows for complete mold filling, eliminating common defects like air bubbles, short shots, and dimensional variations that plague compression molding.

Material Properties

LSR offers exceptional properties including temperature resistance from -65°C to 250°C, excellent chemical resistance, UV stability, and biocompatibility. These characteristics make it ideal for demanding applications in medical devices, automotive components, and consumer electronics.

Production Efficiency

The automated nature of LSR injection molding enables fast cycle times, typically 30-180 seconds depending on part complexity. This efficiency makes it cost-effective for both medium and high-volume production runs.

The LSR Injection Molding Process: Step-by-Step

1. Material Preparation

The process begins with preparing the two-component LSR system. Part A contains the silicone base and crosslinking agent, while Part B contains the platinum catalyst. These components are stored separately to prevent premature curing.

2. Dosing and Mixing

Precise metering pumps deliver exact ratios of Part A and Part B to a static mixer. The mixing ratio is typically 1:1 or 10:1, depending on the specific LSR formulation. Consistent mixing is crucial for achieving uniform material properties.

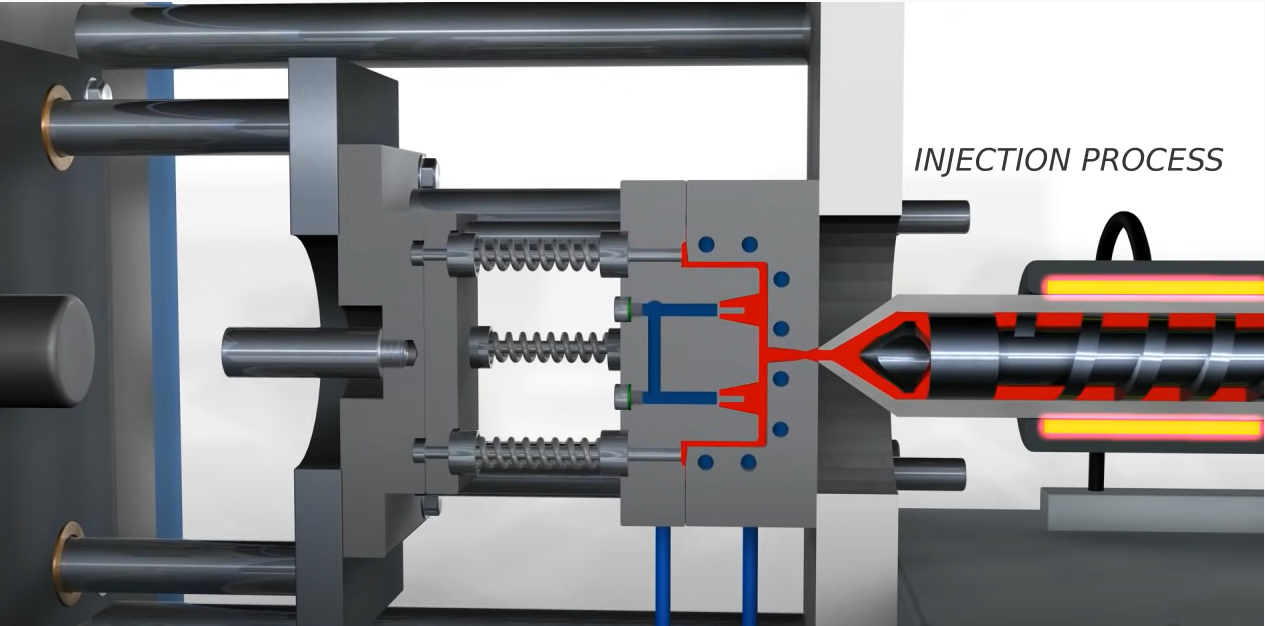

3. Injection and Molding

The mixed LSR is injected into heated molds (typically 170-200°C) using specialized injection molding machines. The material flows through runners and gates to fill the mold cavities completely.

4. Curing Process

Heat from the mold initiates the platinum-catalyzed vulcanization reaction. The liquid silicone transforms into a solid elastomer through crosslinking, typically taking 30-180 seconds depending on part thickness and complexity.

5. Demolding and Finishing

Once cured, parts are automatically demolded. The inherent release properties of LSR often eliminate the need for mold release agents, reducing cycle time and improving part quality.

Types of LSR Injection Molding Systems

Single-Shot LSR Molding

The most common approach where LSR is injected directly into the mold cavity. This method is ideal for simple to moderately complex parts and offers the fastest cycle times.

Multi-Shot LSR Molding

Advanced technique allowing multiple materials or colors to be molded in a single cycle. This enables complex assemblies and reduces post-molding assembly requirements.

LSR Overmolding

Process where LSR is molded over pre-existing substrates like metal, plastic, or fabric. This creates strong chemical bonds and enables complex multi-material assemblies.

Insert Molding

LSR is molded around pre-placed inserts such as metal components, creating integrated assemblies with excellent sealing properties.

Applications Across Industries

Medical Device Manufacturing

LSR’s biocompatibility and sterilization resistance make it ideal for medical applications including surgical instruments, implantable devices, drug delivery systems, and diagnostic equipment components.

Automotive Industry

Automotive applications include seals, gaskets, airbag components, ignition system parts, and under-hood components that require temperature and chemical resistance.

Consumer Electronics

Electronics applications encompass keypads, seals, protective covers, and components requiring EMI shielding or electrical insulation properties.

Baby Products and Food Contact

Food-grade LSR formulations are used for baby bottle nipples, pacifiers, kitchen utensils, and other food-contact applications requiring FDA compliance.

Advantages of LSR Injection Molding

Superior Quality Control

LSR injection molding offers exceptional repeatability and quality control. The automated process minimizes human error and ensures consistent part quality batch after batch.

Design Flexibility

The liquid nature of LSR allows for complex geometries, thin walls, and intricate details that are difficult or impossible to achieve with other materials. Designers can create parts with undercuts, living hinges, and integrated features.

Reduced Secondary Operations

Many LSR parts require minimal finishing operations. The excellent surface finish and dimensional accuracy often eliminate the need for trimming, cleaning, or other post-molding processes.

Environmental Benefits

LSR is recyclable and produces minimal waste during production. The absence of solvents and low energy requirements make it an environmentally friendly manufacturing option.

Design Considerations for LSR Parts

Wall Thickness Guidelines

Optimal wall thickness for LSR parts ranges from 0.5mm to 10mm. Uniform wall thickness prevents stress concentrations and ensures even curing throughout the part.

Draft Angles

Minimum draft angles of 0.5° are recommended for easy demolding. LSR’s inherent release properties often allow for reduced draft requirements compared to other materials.

Gate Design and Placement

Gate design significantly impacts part quality. Common gate types include pin gates, edge gates, and hot runner systems. Proper gate placement ensures balanced filling and minimizes witness marks.

Mold Temperature Control

Consistent mold temperature is crucial for uniform curing. Temperature variations can cause uneven crosslinking, leading to property variations and potential defects.

Quality Control in LSR Manufacturing

In-Process Monitoring

Modern LSR injection molding systems incorporate real-time monitoring of critical parameters including temperature, pressure, flow rate, and cure time. This data ensures consistent quality and enables predictive maintenance.

Testing and Validation

Comprehensive testing protocols include dimensional verification, mechanical property testing, biocompatibility validation, and accelerated aging studies to ensure long-term performance.

Traceability Systems

Advanced manufacturers implement complete traceability systems tracking material lot numbers, processing parameters, and quality test results for each batch.

Choosing the Right LSR Molding Partner

Technical Expertise

Look for manufacturers with extensive experience in LSR processing, including knowledge of material science, mold design, and process optimization. Technical support capabilities are crucial for successful project outcomes.

Equipment and Capabilities

Modern LSR injection molding requires specialized equipment including precise metering systems, temperature control, and automated handling. Evaluate the manufacturer’s equipment capabilities and maintenance programs.

Quality Certifications

For medical and automotive applications, certifications such as ISO 13485, ISO 9001, and IATF 16949 are essential. These certifications demonstrate commitment to quality and regulatory compliance.

Geographic Considerations

When evaluating LSR molding manufacturer China options, consider factors such as communication capabilities, time zone compatibility, logistics, and intellectual property protection.

LSR Injection Molding in China: Market Leadership

China has emerged as a global leader in LSR injection molding, offering several advantages for international customers seeking custom silicone injection molding services.

Manufacturing Excellence

Chinese LSR manufacturers have invested heavily in advanced equipment and technology, often featuring the latest injection molding machines from leading European and Japanese suppliers. This investment enables world-class quality standards and competitive pricing.

Cost Effectiveness

LSR injection molding China offers significant cost advantages without compromising quality. Lower labor costs, efficient supply chains, and economies of scale make Chinese manufacturers highly competitive for both prototype and production volumes.

Technical Innovation

Many Chinese LSR manufacturers have developed proprietary processes and technologies, particularly in areas such as multi-shot molding, micro-molding, and complex overmolding applications.

Supply Chain Integration

China’s comprehensive supply chain ecosystem enables efficient sourcing of raw materials, mold components, and secondary operations, reducing lead times and costs.

Advanced Materials

Development of specialized LSR formulations with enhanced properties such as improved electrical conductivity, enhanced flame retardancy, and superior optical clarity.

Automation and Industry 4.0

Integration of artificial intelligence, machine learning, and IoT technologies for predictive maintenance, quality optimization, and real-time process control.

Sustainability Initiatives

Focus on recyclable LSR formulations, reduced energy consumption, and closed-loop manufacturing processes to minimize environmental impact.

Miniaturization

Continued development of micro-molding capabilities for smaller, more complex parts in electronics and medical device applications.

Common Challenges and Solutions

Material Handling

LSR’s sensitivity to contamination requires careful material handling and storage. Proper filtration systems and clean room environments are essential for maintaining material quality.

Mold Design Complexity

Complex part geometries may require advanced mold designs with multiple slides, lifters, or rotating cores. Experienced mold designers can optimize designs for manufacturability.

Curing Optimization

Achieving complete cure throughout varying wall thicknesses requires careful optimization of temperature profiles and cycle times. Advanced process control systems help optimize these parameters.

Quality Consistency

Maintaining consistent quality across production runs requires robust process control, regular equipment maintenance, and comprehensive quality assurance programs.

Cost Considerations

Initial Investment

LSR injection molding requires higher initial investment compared to compression molding due to specialized equipment and tooling requirements. However, the improved efficiency and quality often justify the investment.

Production Volume Economics

LSR injection molding becomes increasingly cost-effective at higher production volumes. The automated process and fast cycle times provide significant labor cost savings.

Material Costs

While LSR materials are more expensive than conventional rubbers, the superior properties and reduced scrap rates often result in lower overall part costs.

Tooling Considerations

LSR molds require specialized steel grades and surface treatments to withstand the chemical and thermal stresses of the process. Proper mold design and maintenance are crucial for long-term cost effectiveness.

Get Expert LSR Injection Molding Services


🏭 Ready to Transform Your Product Ideas into Reality?

DX Silicone is your trusted partner for world-class LSR injection molding solutions.

Why Choose DX Silicone for Your LSR Project?

🔹 31+ Years of Manufacturing Excellence – Proven track record in custom silicone solutions
🔹 ISO 9001/14001/13485 Certified – International quality standards guarantee
🔹 25,000㎡ Advanced Facility – State-of-the-art LSR injection molding equipment
🔹 Complete R&D Capabilities – From concept to production, we’ve got you covered
🔹 Competitive China Manufacturing – Cost-effective solutions without compromising quality

🎯 Our LSR Injection Molding Specialties:

  • Custom LSR injection molding for medical devices
  • Automotive silicone component manufacturing
  • Food-grade LSR products (FDA compliant)
  • Multi-shot and overmolding capabilities
  • Rapid prototyping to high-volume production

💼 Get Your Free Quote Today!

Ready to discuss your LSR injection molding project? Our engineering team is standing by to provide expert consultation and competitive pricing.

📞 Contact us now for:

  • Free project consultation
  • Technical feasibility assessment
  • Competitive pricing quote
  • Sample development

Don’t let your competition get ahead – partner with China’s leading LSR injection molding manufacturer today!


Conclusion

LSR injection molding represents the pinnacle of silicone manufacturing technology, offering unmatched precision, quality, and efficiency for demanding applications. As industries continue to demand higher performance materials and more complex geometries, LSR injection molding will play an increasingly important role in modern manufacturing.

For companies seeking custom silicone injection molding services, partnering with experienced manufacturers who understand the nuances of LSR processing is essential for project success. Whether you’re developing medical devices, automotive components, or consumer products, LSR injection molding offers the performance and reliability needed for today’s challenging applications.

The future of LSR injection molding looks bright, with continued innovations in materials, processes, and automation technologies promising even greater capabilities and cost-effectiveness. Companies that embrace these advanced manufacturing techniques will be well-positioned to compete in the evolving global marketplace.
